Our Advanced Materials
Innovative solutions engineered for energy and environmental applications.
Lithium Lanthanum Zirconium Oxide (LLZO)
Lithium lanthanum zirconium oxide (LLZO) is an important class of ceramic material with immense potential in energy storage applications, particularly as solid state electrolyte for all solid-state lithium ion batteries.
It is a garnet-type solid electrolyte with a general formula of Li₇La₃Zr₂O₁₂, exhibiting lithium-ion conductivity typically in the range of 0.01 to 0.001 mS/cm in its cubic phase.
Our Innovation
Our startup has developed an innovative and scalable synthesis method to produce high purity single cubic phase LLZO with a controlled microstructure.
Properties & Analysis
- Formula: Li₇La₃Zr₂O₁₂
- Conductivity: Up to 0.05 mS/cm at RT.
- Particle Size: < 2 μm (from FE-SEM).
- Analysis: Single cubic phase (XRD); Uniform Li environment (⁷Li CP-MAS NMR).
Ga-Lithium Lanthanum Zirconium Oxide (LLZGO)
Ga-doped lithium lanthanum zirconium oxide (LLZGO) is a highly promising member of the garnet-type solid electrolyte family, engineered to stabilize the cubic phase of LLZO for exceptionally high lithium-ion conductivity.
Our Innovation
Our startup has developed an innovative and scalable synthesis method to produce high purity single cubic phase LLZGO with a controlled microstructure.
Analysis Results
- Formula: Li₇La₃Zr₂O₁₂
- Conductivity: 0.4 to 1.2 mS/cm at RT.
- Particle Size:< 2 μm (from FE-SEM).
- Analysis: Single cubic phase (XRD); Uniform Li environment (⁷Li CP-MAS NMR).
Tetraethylammonium tetrafluoroborate (TEA⁺ BF₄⁻)
TEABF₄ is a quaternary ammonium salt distinguished by its remarkable versatility. As a premium electrolyte, it improves ionic conductivity and electrochemical stability in advanced energy storage systems such as lithium-ion batteries and supercapacitors.
Our Innovation
Our startup has developed a green, innovative, and scalable synthesis method to produce NMR-pure Tetraethylammonium tetrafluoroborate.
Analysis & Key Properties
- Formula: TEA⁺ BF₄⁻
- Analysis: Purity confirmed by NMR and IR.
Chemical Structure
1-Ethyl-3-methylimidazolium tetrafluoroborate (EMIM⁺BF₄⁻)
EMIM⁺BF₄⁻ is a high-performance ionic liquid distinguished by its exceptional electrochemical stability, low volatility, and broad thermal operating window. It plays a pivotal role in enhancing the performance and safety of technologies such as supercapacitors, lithium-ion batteries, and green chemistry processes.
Properties and Analysis
- Common Uses: Utilized as electrolytes, additives, biosensors, solvents, and lubricants.

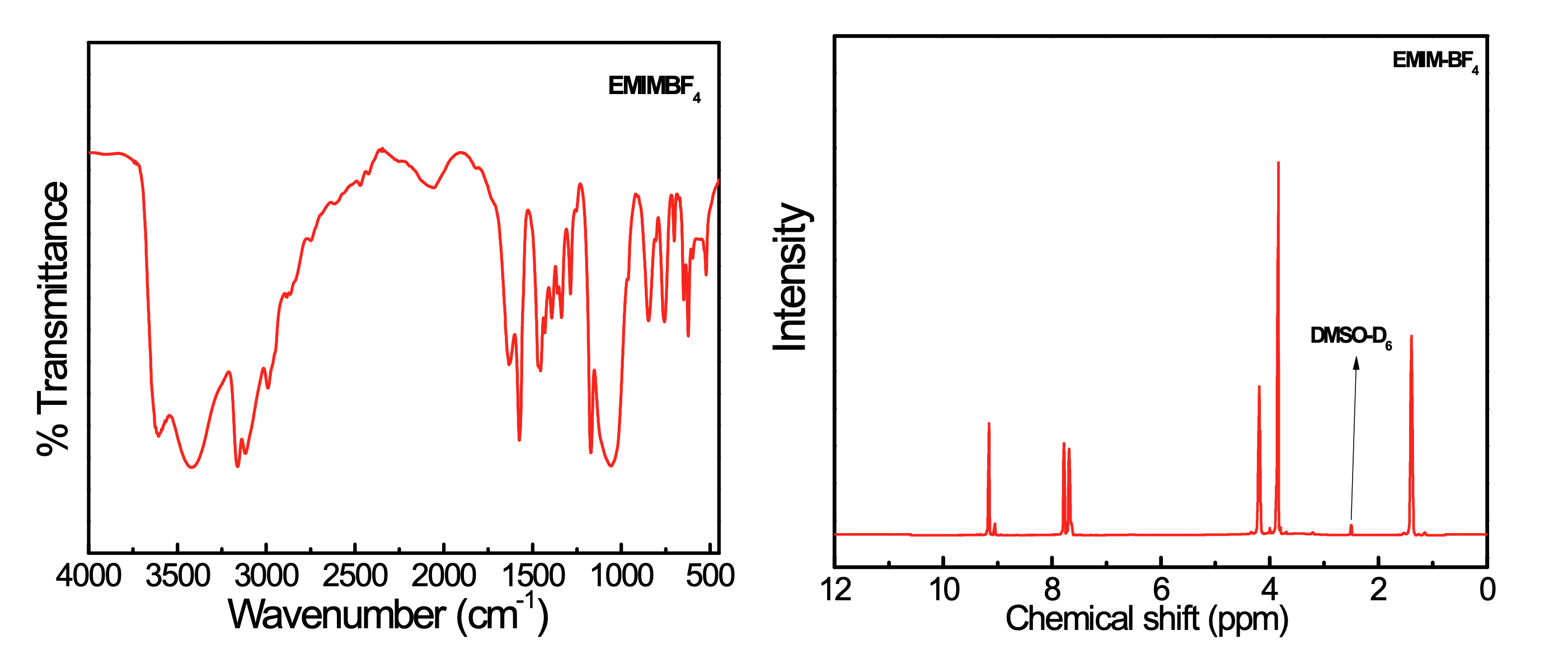

- Analysis Results: Successful formation confirmed by NMR and FTIR analysis.
Mesoporous Silica (SBA-15)
SBA-15 is a next-generation mesoporous silica material renowned for its highly ordered hexagonal pore structure, large and tunable pore sizes (5–15 nm), and exceptional thermal and mechanical stability. Its thick pore walls and high surface area make it a versatile platform for advanced applications.
Analysis & Key Properties
- Primary Use: Advanced adsorbent in catalysis, drug delivery, and sensor design.
- Surface Area: BET specific surface area of 500 to 700 m²g⁻¹.

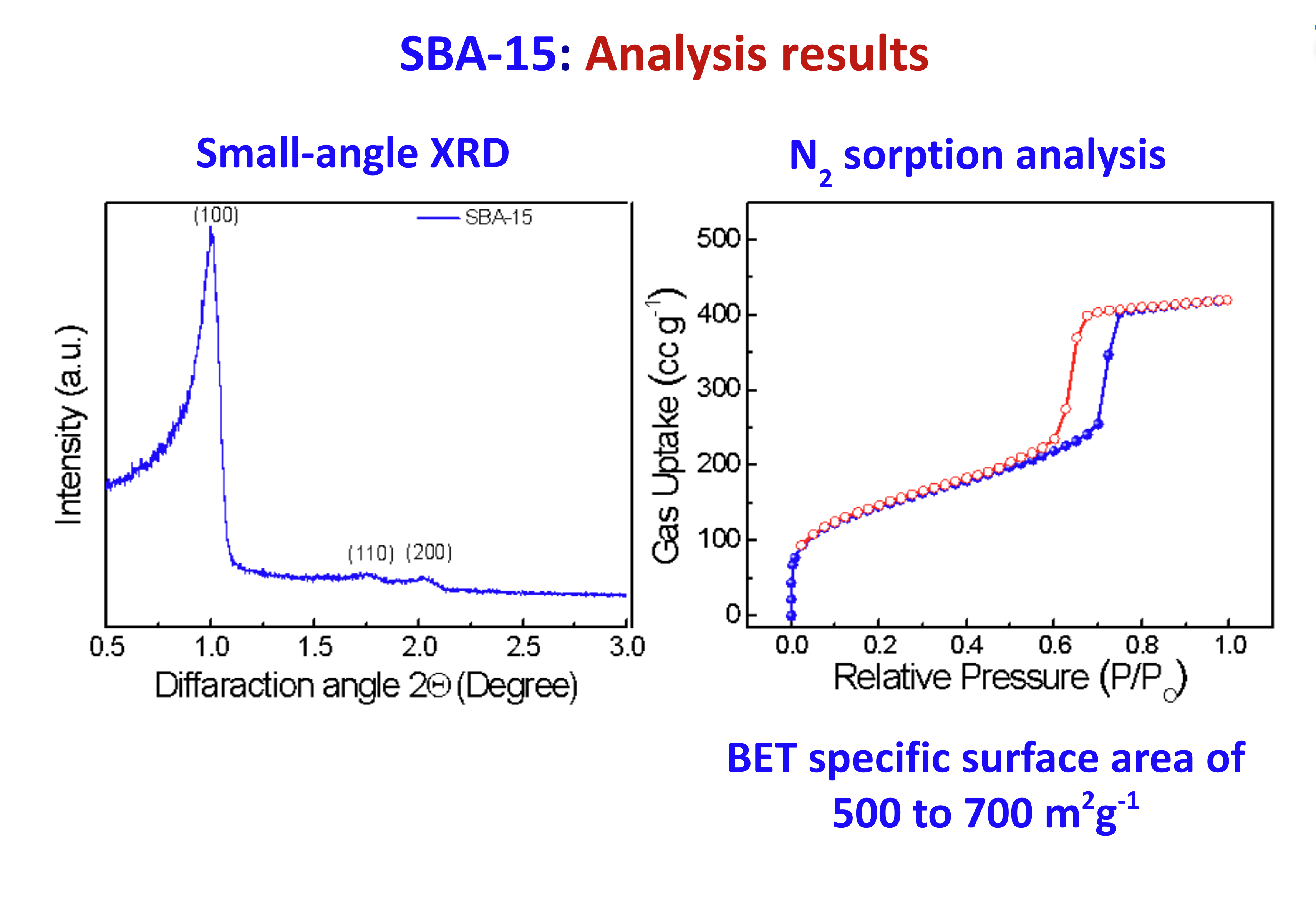

- Structural Analysis: Confirmed via Small-angle XRD and N₂ sorption analysis.
